Brushed Nickel Deep U-Channel for 1/2" Glass Shower Door – 95" Aluminum Fixed Panel Mounting Channel

The Brushed Nickel Deep U-Channel for 1/2" Glass Shower Door – 95" Aluminum Fixed Panel Mounting Channel is designed to securely mount and stabilize fixed glass panels in frameless shower enclosures. Ideal for residential and commercial applications, this channel provides strong support when installing glass to walls, ceilings, or floors. The deep pocket design offers superior holding power, ensuring a secure fit for both 3/8" and 1/2" (10 mm to 12 mm) thick monolithic tempered glass.

Sold by: Each
Finish/Color: Brushed Nickel
Material: Aluminum
Length: 95" (2413 mm)

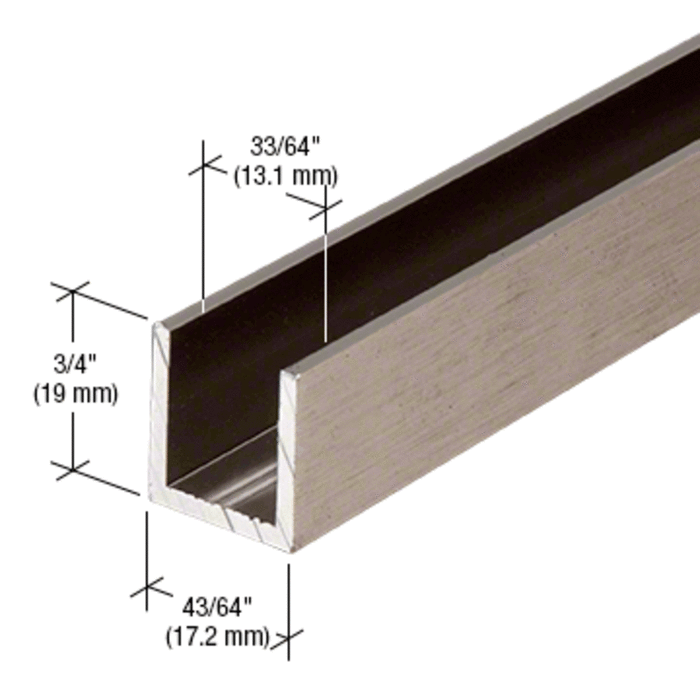

Height: 3/4" (19 mm)
Width: 11/16" (17.1 mm)
Glazing Thickness: 3/8" to 1/2" (10 mm to 12 mm)
Glazing Pocket Width: .518
Profile: Deep
Part Number: BH-475BN

Constructed from durable aluminum with a modern brushed nickel finish, this U-channel delivers excellent corrosion resistance while complementing contemporary bathroom designs. Measuring 95" in length with a 3/4" height and 11/16" width, it is engineered for precise installation and compatibility with standard shower systems. The .518 glazing pocket width ensures proper glass seating when wet glazed with clear silicone for maximum stability.

This deep profile channel can be used alone or paired with a standard U-channel and is also suitable as a top channel for drop-in glass installations. End caps are available to provide a clean, finished look.
